Newest KT8260L Analog Multimeter ACV/DCV/DCA/Electric Ohm Resistance Tester w/ Test Pen

Newest KT8260L Analog Multimeter ACV/DCV/DCA/Electric Ohm Resistance Tester w/ Test Pen
  • Продавецkyxn9.info
  • Список ценUS $26.73piece
  • Продажная ценаUS $26.73piece
  • ДоставкаБесплатная доставка
  • Рейтинги3,5 (532)

Oписание продукта

Check Out for More Items Here!



CM213 E04-008 E04-023 E04-032

E04-038 GVA-19 VC-97 VC-2002





This meter is a high-performance digital autorange automotive multimeter. Besides AC and DC voltage, AC and DC current, resistance, diode, continuity, capacitance, frequency, duty cycle, and Celsius/Fahrenheit temperature measurement functions, this meter can also be used to measure Engines RPM, Dwell AngleFuel Injection Duration, O2-SensorAlternator and for fault code detection. An ideal measurement tool for automotive repair and service.


It has an CE Marking approval from European Directives for complying with the essential health and safety requirements. It also has an overvoltage installation category compliance to IEC 61010-1 designed to protect against transients or spikes in CAT I and CAT II categories. The equipment is protected throughout by double insulation or reinforced insullation.





Features:

  • Digital Autorange Automotive Multimeter
  • Measurement Scope: DC and AC Voltage, DC and AC Current, Resistance, Capacitance, Diode, Frequency, Continuity, Cuty Cycle, Temperature (°C/°F) RPM Engine, Dwell Angle,Fuel Injection Duration, O2-sensor, Alternator and DTC (Diagnostic trouble Code)detection and fault code detection
  • Large Dual-LCD display
  • With Built-in Buzzer
  • Low battery indication
  • Auto power off
  • Full-range overload protection
  • With backlight function
  • Analog Bar Graph LCD display
  • Manual ranging and auto ranging function
  • Data HOLD function
  • Features Data Store, Recall and Erase
  • MIN / MAX Recording Mode



Specifications:

  • Display
    • Main Display : 5-digit LCD, with a max reading of 99999
    • Secondary display : 4-digit LCD, with a max. reading of 9999
  • Over range Indications : "OL" shown on the LCD
  • Negative Polarity Indication : Negative sign "-" shownon the LCD automatically
  • Sampling Rate : About 2~4 times/sec
  • Operating Temperature : 0 ~ 40°C, <75% RH
  • Temperature Coefficient : 0.15 x (specified accuracy)/°C (<18°C or >28°C)
  • Storage Temperature : -20 ~ 60°C, <85% RH
  • Operating Altitude : 0 to 2000 meters
  • Battery : 6 x 1.5V battery, AA or equivalent
  • Low battery Indication: shown on the display
  • Dimension : 200 x 98 x 54mm
  • Weight : About 610g (including batteries)

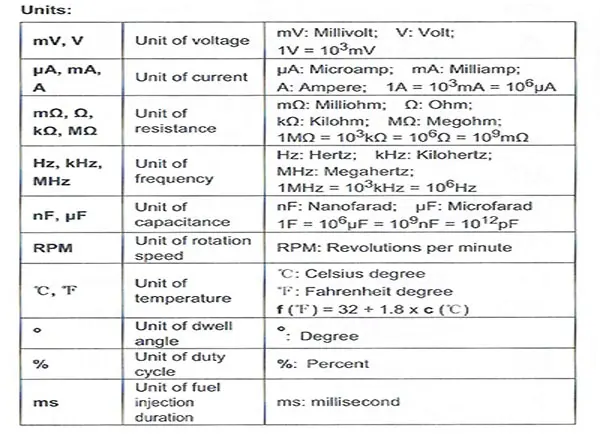

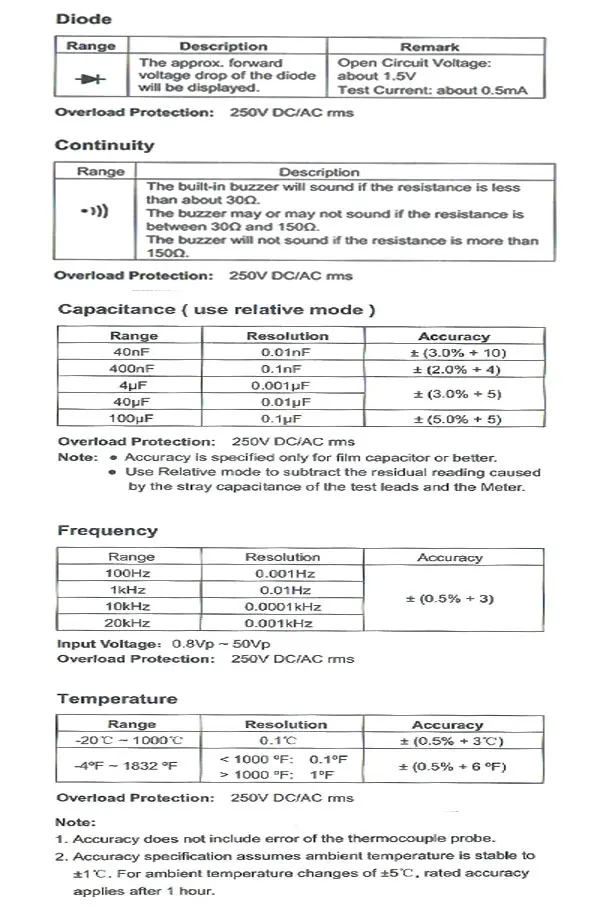

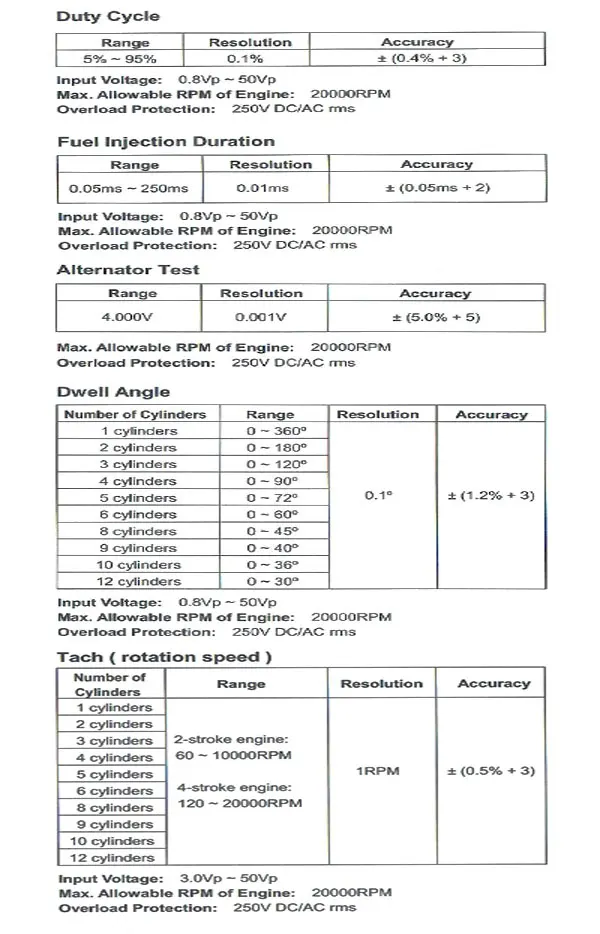

E04-024_operationE04-024_unitsE04-024_techinal_specs1E04-024_techinal_specs2E04-024_techinal_specs3



Set Includes:

  • 1 x Digital Automotive Multimeter
  • 1 x Pair Test Lead
  • 1 x K-type Thermocouple
  • 1 x Inductive Pick-up
  • 6 x 1.5V AA Batteries
  • 1 x English Manual
  • 1 x Carrying Pouch
  • Standard Packaging Box













E04-024_set

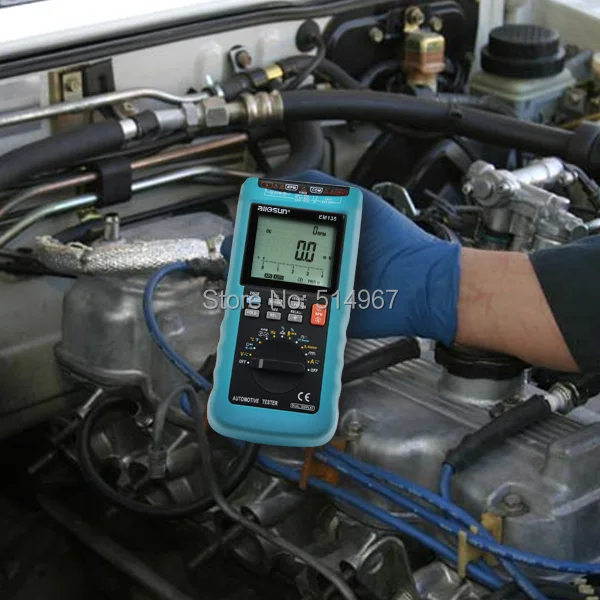

E04-024_application

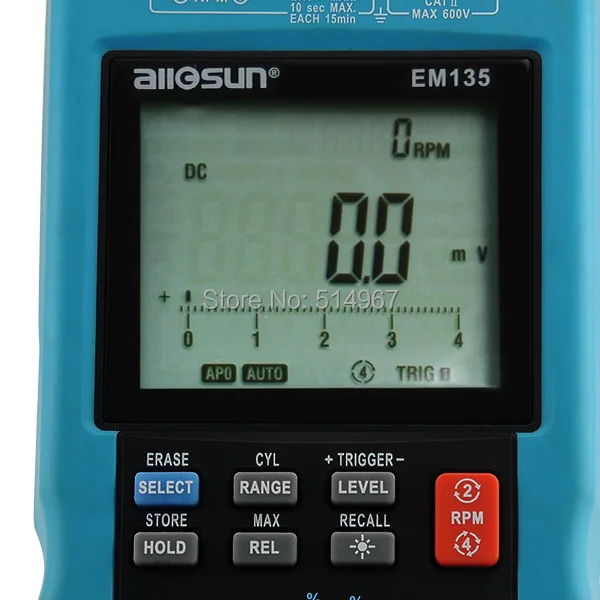

E04-024_LCD







E04-024_knob

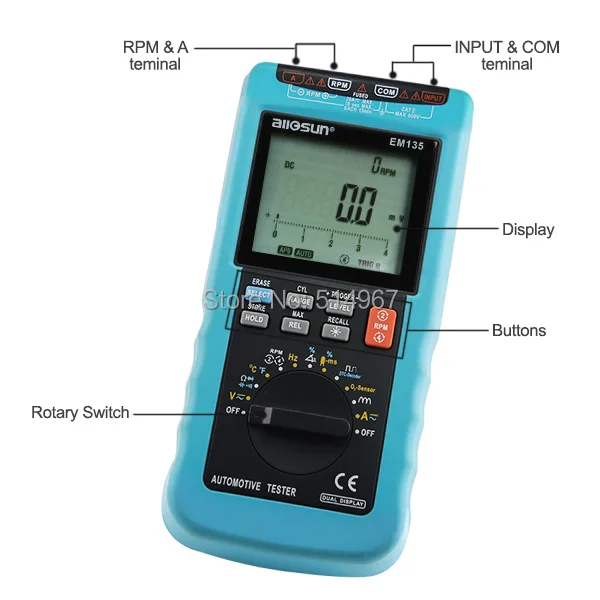

E04-024_parts







E04-024_port

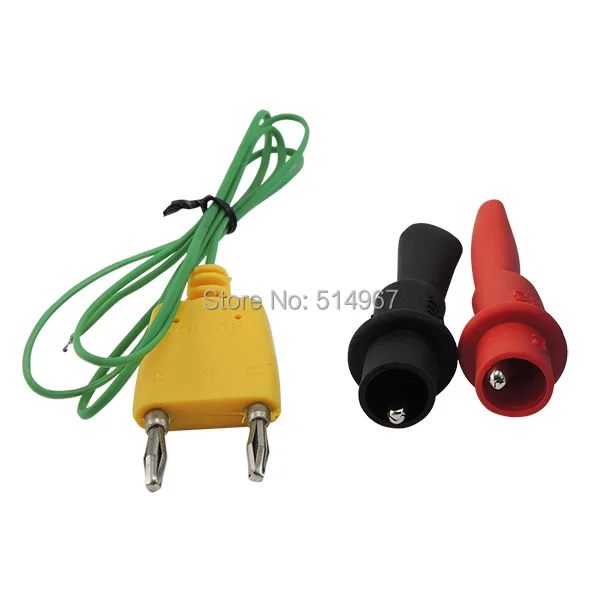

E04-024_ktype





E04-024_batt







E04-024_accessories







E04-024_back







E04-024_fb







E04-024_test-lead







E04-024_set-in-case
