7 Inch TVI AHD Camera Tester CCTV Tester Monitor Analog HD TVI3.0 AHD2.0 1080P Camera Testing VGA HDMI Input 12V Ouput X41TAC

7 Inch TVI AHD Camera Tester CCTV Tester Monitor Analog HD TVI3.0 AHD2.0 1080P Camera Testing VGA HDMI Input 12V Ouput X41TAC
  • Продавецkyxn9.info
  • Список ценUS $104.41piece
  • Продажная ценаUS $104.41piece
  • ДоставкаБесплатная доставка
  • Рейтинги4,2 (995)

Oписание продукта

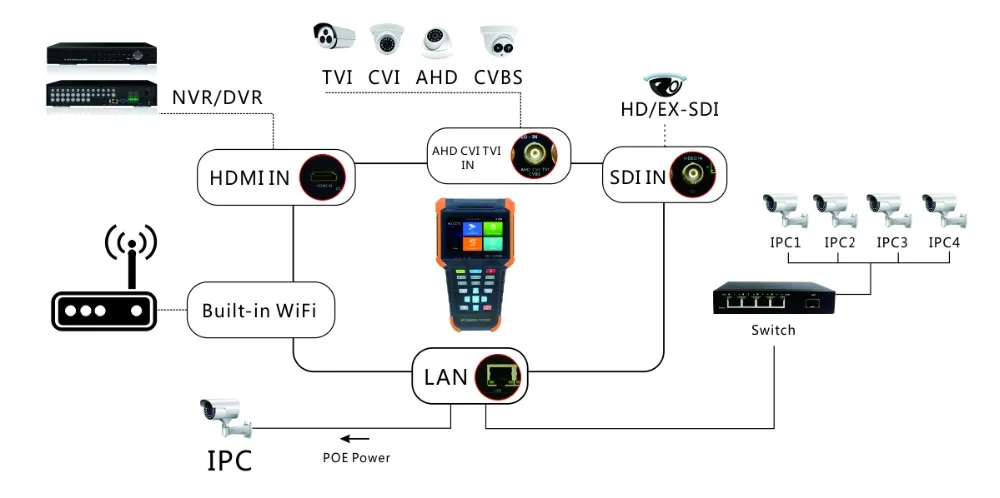

X4  -ADHS  =IP+Analog+AHD+CVI+TVI+SDI  +UTP cable test+RJ45 cable TDR test+HDMI in
X4  -MADHS  =IP+Analog+AHD+CVI+TVI+SDI+  Digital Multimeter  +UTP cable test+RJ45 cable TDR test+HDMI in
X4  -CMADHS  =IP+Analog+AHD+CVI+TVI+SDI+  Digital Multimeter+Cable Tracer  +UTP cable test+RJ45 cable TDR test+HDMI in



Handheld 4" waterproof dustproof interface HD CCTV Tester

Model: X4 series

● 4 inch IPS touch screen, 800*480 resolutions


● H.265/H.264, 4K video display via mainstream

● Chrome browser, test and set Axis camera

● HDMI Input, support 1080P

● DC12V 3A, DC 48V PoE power output

● RJ45 cable TDR test, cable quality test

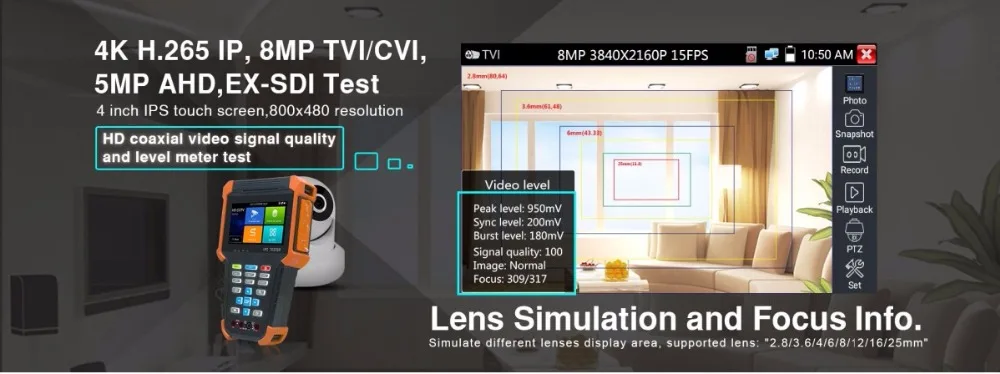

● Rapid ONVIF& HD camera\'s Lens simulation and focus function

● Interface waterproof and dustproof

● Backlight buttons, easier to operate in the dark

● Tester Play: Tester, mobile phone, PC display at the same time


Product Overview

The 4 inch IPS touch screen IP camera tester is designed for maintenance and installation of IP ,analog cameras as well as other security equipment. The 800*480 resolution enables it to display network HD cameras and analog cameras in high resolution. The unit supports many ONVIF PTZ and analog PTZ control. Additional, it with other functions  RJ45 cable TDR test,  UTP cable test and cable scan etc. CCTV installers often need to carry a variety of testing tools to complete their work. If take one camera tester, making working conditions safer and increasing



●CCTV system installation and maintenance

●Network cabling project installation and maintenance

●Dome camera, CVBS 4K H.265 IP camera testing

●Video transmission channel testing

●PTZ controller



1. 4 inch IPS touch screen,800*480 resolution
2. New- H.264 and H .265 ,4K video display via mainstream
3. Ping test;
4. CVBS Camera test;
5. UTP Cable test;
6. 4K IP Camera test;
7. IP & CVBS camera test, PTZ controller
8. New- Rapid video, just by one key to detect all network cameras and auto display
9. Rapid ONVIF, auto log in and display image from the camera, activate Hikvision camera, and also can create testing report

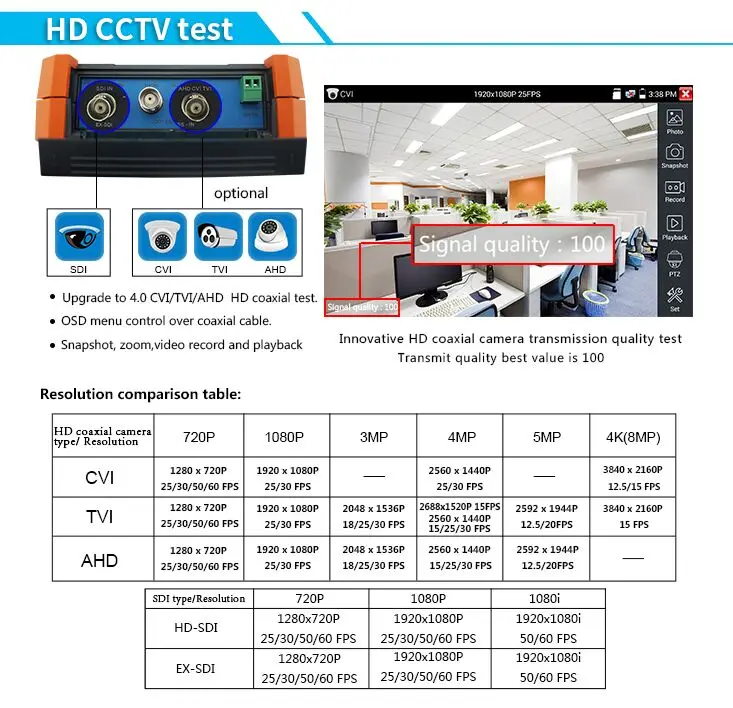

10. New- IP and analog testing at the same time , converter test from analog to digital with dual test window IP & CVBS
11. New- Screen management, change function’s icons order, create new directory
12. New- Shortcut button, drop-down menu , can select PoE power ,IP setting, CVBS, LAN info etc in any interface
13. Improvement cable tester, UTP cable,  can save testing report, if special number, need customized
14. New- RJ45 cable TDR test, test cable pair status, length, attenuation, reflectivity, impedance, skew etc

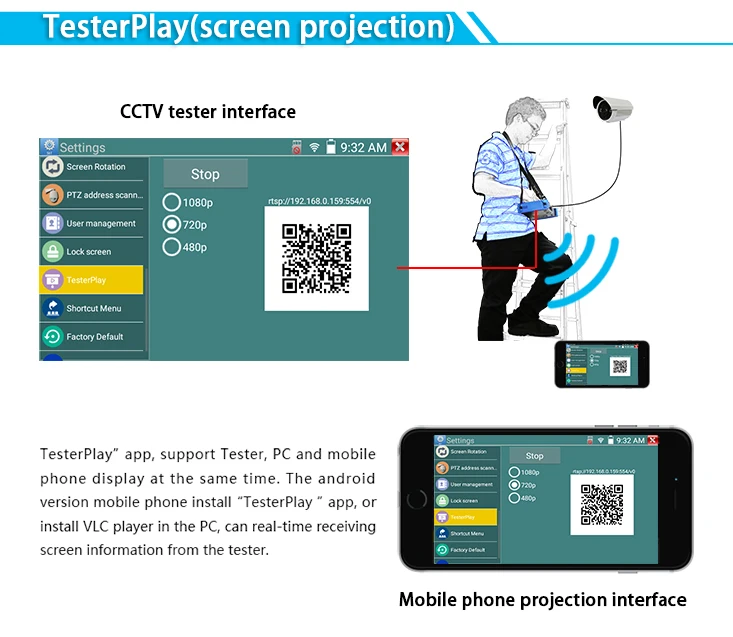

15. TesterPlay(screen projection): tester, android version mobile phone and PC display at the same time
16. New- Screen lock, password lock and pattern lock are optional
17. PTZ Control;
18. New- CVBS loop test , the tester send and receive color bar generator signal ,to check BNC cable
19. New- Traffic monitoring of the tester "LAN port", display network port or WIFI connection real-time upload and download speeds and other network parameters
20. New- Customers self update software ,you can install apps with android version ,such as Skype, wechat etc
21. ONVIF camera test, support 4K/h.265/h.264, Network PTZ controller (ONVIF)
22. Built in Wi-Fi ,display image from the wireless camera , create WIFI hotspot
23. New- 4K video files and MKV/MP4 media files play
24. PoE DC48V power output, Max power 24W,12V /2A power output, as a power bank
25. New- Quick office, quick office app ( support excel ,word ,ppt format ) doc. editable
26. 8GB SD card including
27. IP discovery, it can auto-scan the whole network segment IP, and auto-modify tester’s IP address
28. Display its genuine resolution of the IP camera images
29. PTZ control supports more than 30 protocols such as PELCO-P, PELCO-D, and SAMSUNG
30. Enhanced Color bar generator, PAL/NTSC multi-system color bar video generator

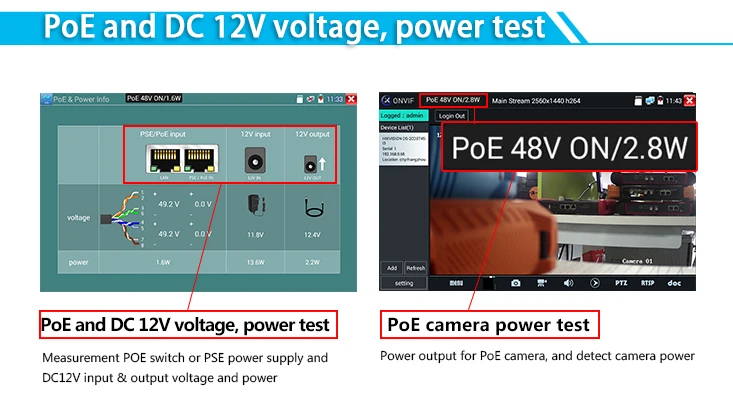

31. POE voltage measurement, PING test ,IP address scan, port flashing etc
32. Audio in , support record and save the audio/LED lamp, calculators, music players and other application tools
33. 7.4 V /4000mAh Lithium Ion Polymer Battery, after 3~4 hours charging , working time lasts 9 hours
