Oписание продукта

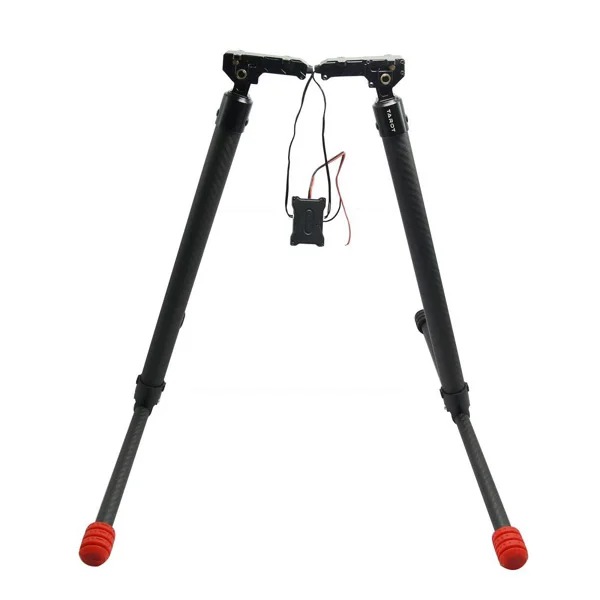

Tarot T Series Electronic Retractable Landing Gear Skid TL96030 with TL8X002 Controller for T810/ T960 810sport/ 960 sport


Landing Gear Description:

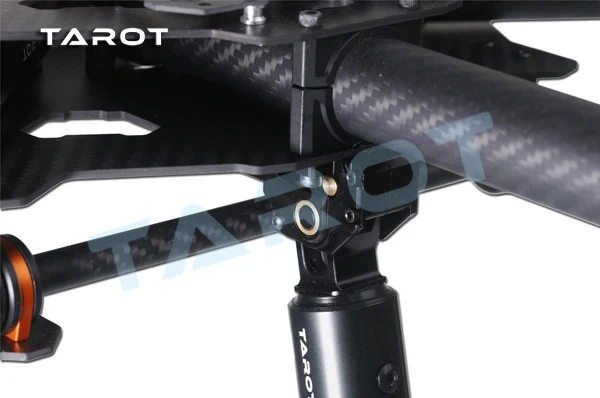

- Full metal medium size landing gear adopting 6061T6 CNC aluminum alloy, suitable for DIY multicopter like T810/ T960/ T15/ T18/ 810sport/ 960sport (need to drill two M3 installing holes and additonally buy four damper base group)
- Simple structure, quick installation, small space

Landing Gear Specs:
- Dia 25mm metal upper tube fixture base
- Dia 25mm metal lower tube fixture base
- M3 20MM hexa screw x 4
- M3 12MM hexa screw x 4
- M3 x 8MM thread screw x 4

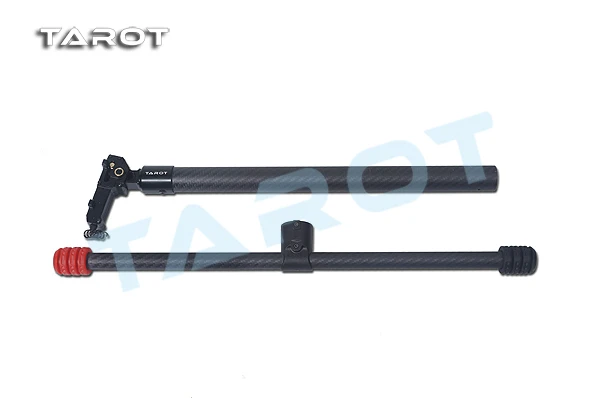

- Metal medium electronic landing gear group
- Dia 4 x 6MM pop rivet x 4
- Dia 25MM 3K pure carbon tube x 2
- Dia 25---dia16 convert base TL96017 x 2
- M2.5 x 25 hexa screw x 2
- M2.5 x 30 hexa screw x 2
- M2.5 antislip nut x 4
- Dia 16mm 3K pure carbon tube x 2
- Multiaxis landing gear damper cover TL96022 x 4

Gear Controller Description:
- Tarot  High perfermance of New Developing Electric Retractable landing gear control system ,

Supply voltage:
- Operating voltage: 3S-6S (12.6V --- 25.2V)
- Minimum voltage: 10V
- Maximum voltage: 26V

Controller Function Description:
- Reverse power protection: The power of positive and negative polarity will not damage the landing gear control panel.
- The receiver is connected Description: Enter a channel through 3P line even ordinary receiver, the signal for the PWM, pulse width of zero value 1520us, the pulse width is greater than 1520us for landing gear, the pulse width is less than 1520us is closed landing gear.
- The receiver connection instructions: initial power-up if there is no receiver signal, the indicator flashes rapidly until the receiver detects the signal.
- Power Protection: After initial power-up if the receiver is close to the landing gear of the action, landing gear does not respond, and the indicator light flashes slowly, until the receiver instruction becomes the landing gear, the light goes out.
- Work instructions: When the retractable landing gear operation is being performed, the indicator lit until the landing gear completely stopped, the light goes out.
- Runaway protection: When the work process, after the loss of receiver signal, the landing gear will automatically put down.

How to check whether the motor positive and negative reversed:
- When the landing gear to work properly, remove the receiver signals to the control panel to enter the failsafe state, if the state is to put the landing gear then the positive and negative electrical wiring is correct, otherwise described motor positive and negative reversed.

Fault diagnosis:
- The power did not respond: Please check the power of positive and negative connections are correct.
- The landing gear during the operation to stop in the middle: Please check for foreign objects blocking retractable landing gear.
- Retractable landing gear to perform the action does not respond: Check if foreign objects blocking retractable landing gear.
- After the landing gear completely stopped, the light does not go out: Check whether the supply voltage to meet the requirements.
- After power has been rapidly flashing lights: Check the receiver is connected correctly.

Package Include:
- 1 pair  x  Tarot T Series Electronic Retractable Landing Gear TL96030
- 1 x landing gear controller
