Oписание продукта

Free shiping 7 inch IPS touch screen 4K H.265 IP Full 4K All in One IPC Tester  AHD TVI CVI SDI HDMI





IPC-9800 plus  :IP + Analog + RJ485 Cable TDR



IPC-9800ADH plus:IP+Analog+AHD+TVI+CVI+HDMI



IPC-9800ADHS plus:IP+Analog+AHD+TVI+CVI+SDI+HDMI



IPC-9800CLMOVT Plus: IP + Analog, Cable tracer, multimeter, optical power meter, Visual fault  locator, TDR Cable test



IPC-9800CLMOVTADHS(Full function version): IP + Analog+AHD+TVI+CVI+SDI, Cable tracer, multimeter, optical power meter, Visual fault  locator, TDR Cable test

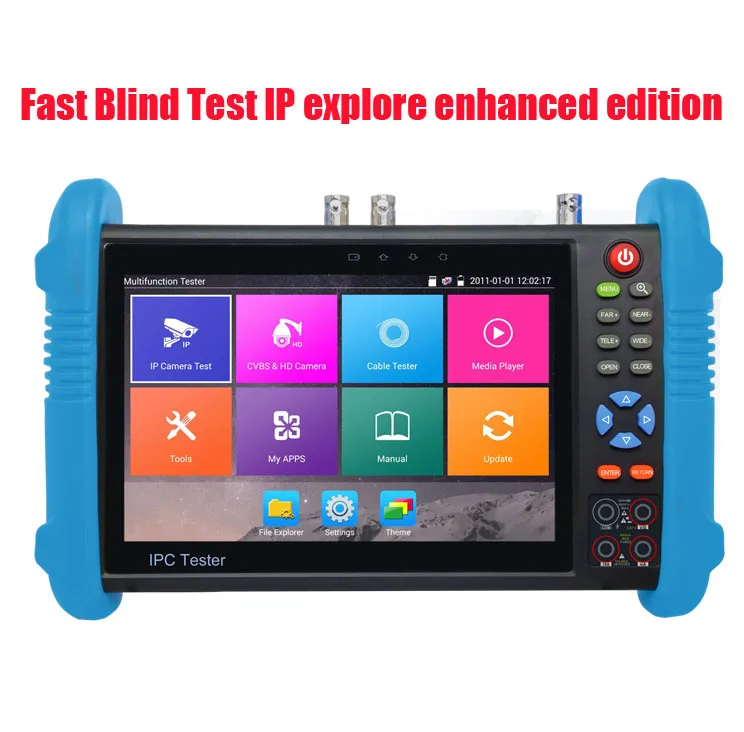

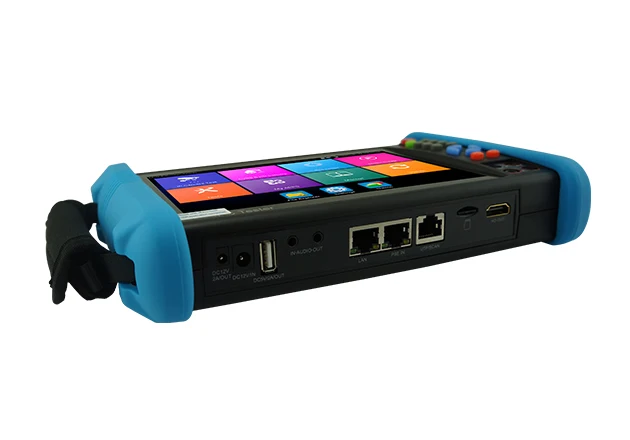

7 inch IPS touch screen 4K H.265 IP Full 4K All in One IPC Tester



●  8MP CVI/ TVI/ AHD, 8MP EX-SDI, HD-SDI, 3G-SDI*

●  Dahua, Hikvision, Axis etc ONVIF camera test

●  Chrome browser, set Axis etc cameras parameters

●  Built in WIFI, create WIFI hotspot

●  HDMI input & output, support1080p

●  DC12V 3A, DC48V PoE power output,max power 25.5W

●  RJ45 cable TDR test, cable quality test



LCD

Item series

                                  IPC-9800 Plus series

Display

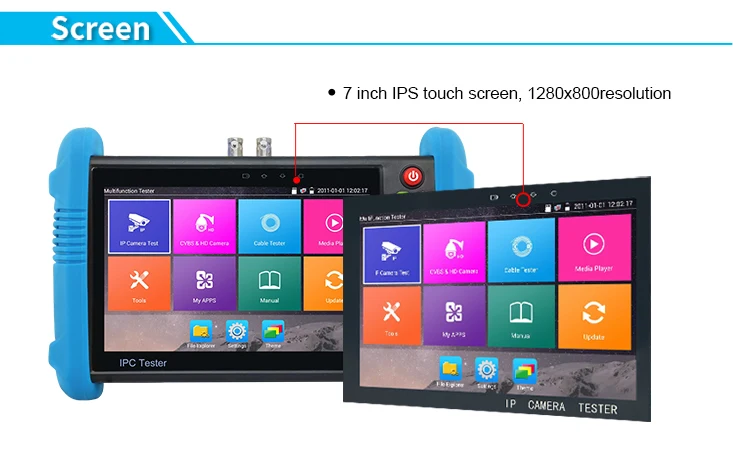

New 7 inch IPS touch screen, 1280*800 resolution

  Video Mode

     CVBS

1 channel BNC   input & 1 channel BNC looped output, NTSC/PAL (Auto adapt)

Analog video level meter, peak video signal level, SYNC signal level, Color bar chroma level  measurement *

PTZ control, RS485 control, Baud 600-115200bps,compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic etc

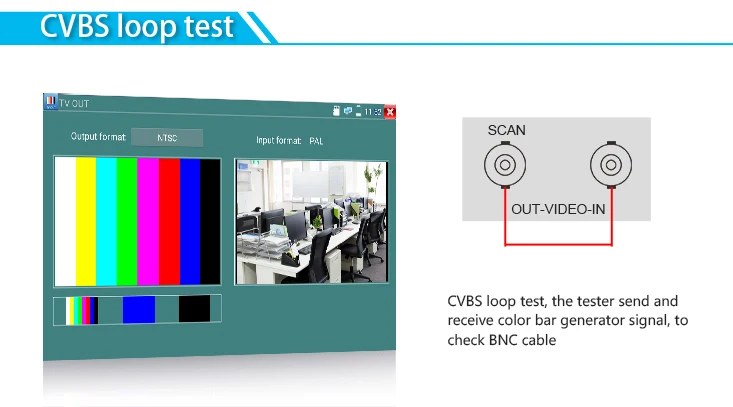

CVBS loop test

the tester send and receive color bar generator signal, check BNC cable

IP camera test

4k/H.265/H.264

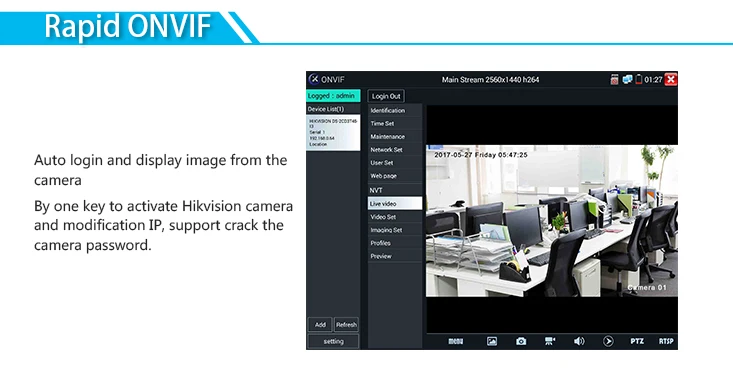

IP Discovery/Quick ONVIF/IPC test /RTSP play /Client APK

Rapid Video

Auto view the video, create testing report

Hik test tool

pressing just one key to activate hikvision camera , Image test, can modify the user name, password and IP parameters

Dahua test tool

Dahua camera test, modify the user name, password and IP parameters

IP& CVBS test

IP& CVBS test at the same time, converter test  from analog to digital with dual test window

Coaxial HD test*

8MP TVI camera test, 3840 x 2160P 15FPS, UTC control/call OSD menu*

8MP CVI camera test, 3840 x 2160P 12.5F/15F,UTC control/call OSD menu*

8MP AHD camera test, 2560x1944P 15FPS, UTC control/call OSD menu*

8MP EX-SDI, HD-SDI, 3G-SDI, UTC control & call OSD menu*

HDMI input *

1 channel HDMI input, support 1080P

Zoom Image

4x zoom, to enlarge image, Screen snapshot, record ,save ,view and record and play back

Analog Video out

color bar   generator

Output one channel PAL/NTSC color bar video signal for testing monitor or video cable

HDMI output

1 channel HDMI   output, support 1920*1080P



12V/2A power

Output DC12V/3A  power out ,supply temporarily power for the camera



Power output

PoE power output

48V PoE power output, max power 25.5W

5V/2A power   output

USB 5V 2A power output, as a power bank

 Cable test

TDR cable test *

BNC cable, network cable, telephone cable, RVV cable and elevator cable, cat 5/6 cable’s length and short circuit. measurement range 1.2KM

Cable tracer

search BNC cable, network cable and telephone cable from the mess cables

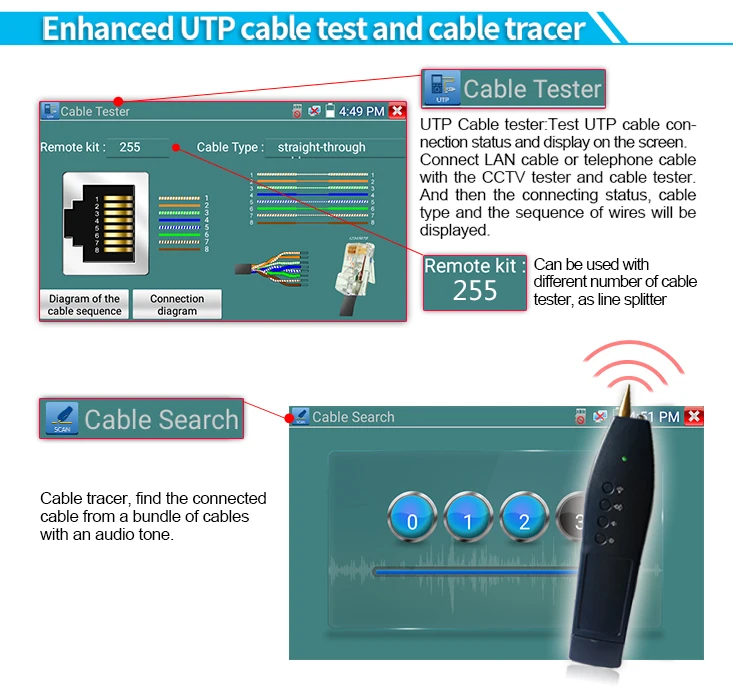

UTP cable test

Test UTP cable connection status and display on the screen. Read the number on the screen

RJ45 cable TDR test

test cable pair status, length,   attenuation, reflectivity, impedance, skew etc, measurement range 180M.

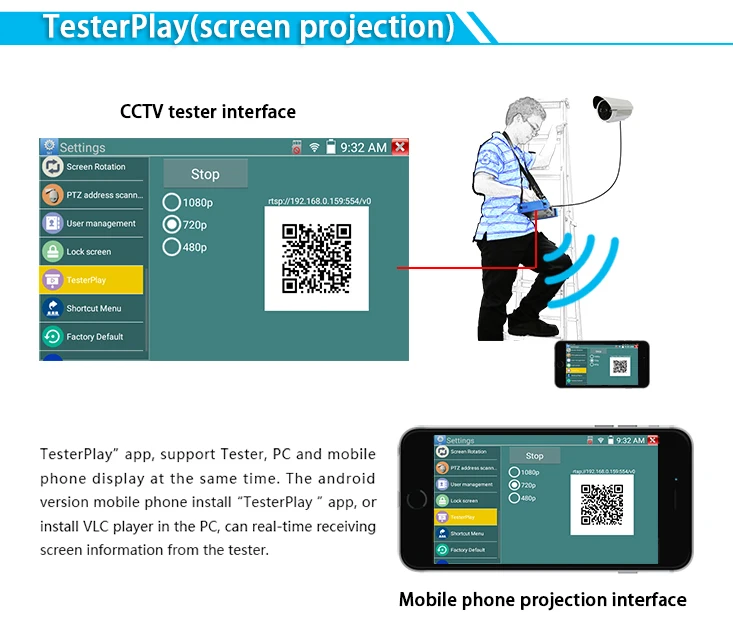

TesterPlay

screen projection:tester, mobile phone and PC display at the same time (For android version mobile phone)

Network test

Trace route, Link monitor, DHCP server, port flashing, Ping test

Wi-Fi

Built in WIFI,speeds150M,display wireless camera image

Audio test

1 channel audio signal input, test whether sound normal, 1 channel audio signal, to connect headphone

Data monitor

Captures and analyzes the command data from controlling device, also can send   hexadecimal

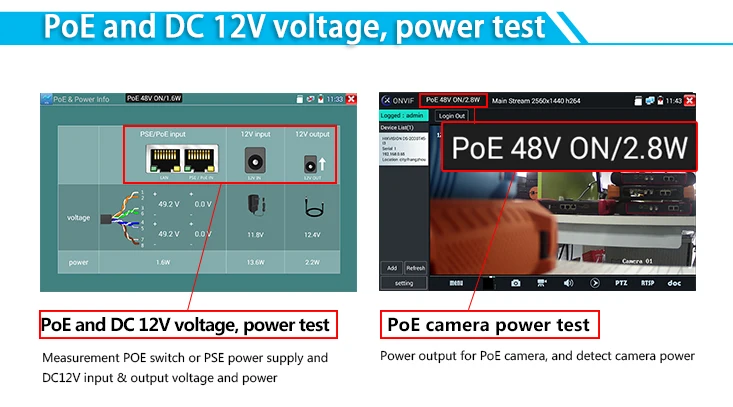

PoE test

Measurement POE switch or PSE power supply   voltage and cable connection status

Drop-down menu

You can select   PoE power switch ,IP setting, WLAN switch , HDMI IN functions etc in any interface

External power supply

DC 12V 2A

Battery

Built-in 7.4V Lithium  polymer battery,5400mAh

Rechargeable

After charging 5~6 hours, normal working time 10 hours

Operation setting

OSD menu, select your desired language: English,  Chinese, Korean, Russian, Italian, French, Polish, Spanish, Japanese etc

Auto off

1-30   (mins)

Working Temperature

-10℃---+50℃

Working Humidity

30%-90%

Dimension/Weight

240mm x 154mm x 46mm / 620g

Below are optional functions (If add any functions into tester, you need pay addition cost), full model is IPC-9800CLMOVTADHS plus

M

Digital Multimeter: DC and AC voltage measurement, Resistance measurement, Continuity test, Diode measurements, Capacitance measurement

O

Optical power meter, Wavelength:1625,1550nm,1490nm,1310nm,1300nm,850nm, measurement range ,-70 ~ +10 dBm, for optical power testing and Fiber link loss relative measurement

V

Visual fault  locator: 10mW visual fault locator with 650nm  wavelength can emit red laser sources to test multi-mode and single mode fiber’s bending and breakage, test range 10KM

T

TDR cable test: BNC cable, network cable, telephone cable, RVV cable and elevator cable, cat 5/6 cable’s length and short circuit. measurement range 1.2KM

A

8MP AHD test, 3840 x 2160P 15FPS , UTC control/ call OSD menu

H

8MP TVI camera test,3840 x 2160P 15FPS, UTC control/ call OSD menu

D

8MP CVI camera test,3840 x 2160P 12.5F/15F,UTC controld call OSD menu

S

8MP EX-SDI, HD-SDI, 3G-SDI, UTC control & call OSD menu

L

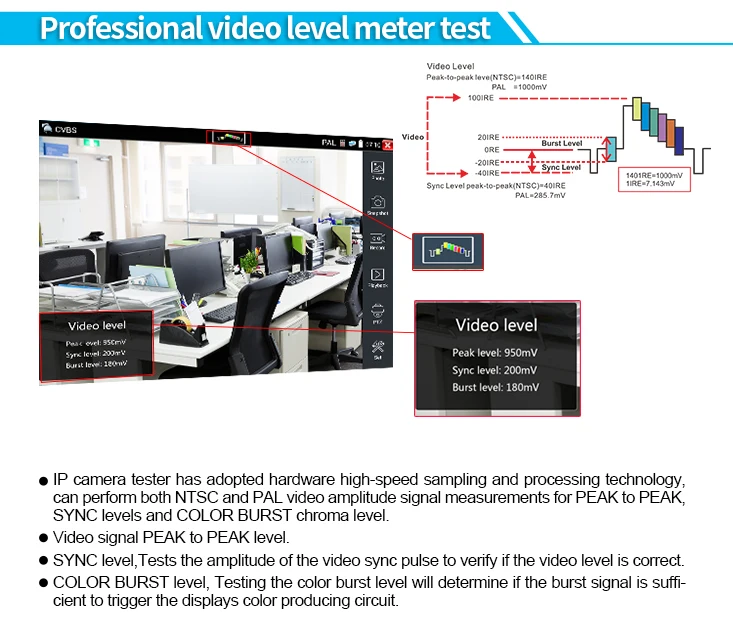

Video level meter, PEAK ,SYNC signal level, color burst chroma  level measurement

C

Cable tracer ,search BNC cable, network cable and telephone cable from the mess cable











980010980059800698007



Application:

● CCTV system installation and maintenance

● Network cabling project installation and maintenance

● Dome camera, 4K H.265 IP camera testing

● Video transmission channel testing

● PTZ controller
