Handheld Digital Dual K Type Thermocouple Thermometer Temperature range 50 ~ 1300 degree

Handheld Digital Dual K Type Thermocouple Thermometer Temperature range 50 ~ 1300 degree
  • Продавецkyxn9.info
  • Список ценUS $88.56piece
  • Продажная ценаUS $88.56piece
  • ДоставкаБесплатная доставка
  • Рейтинги3,4 (961)

Oписание продукта

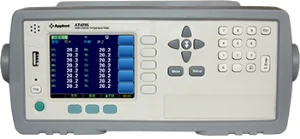

The AT4116 is easy to set up and reconfigure from the front panel. AT4116 has bi-directional communication via RS-232C, which enables control from a host computer.
The AT4116 offer easy portability along with applent\'s built-in signal conditioning and Universal Input Module, at a price to fit your budget.
AT4116 supports K/J/T type thermocouples, measurement range from -200°~1300°.
AT4116 is tested to stringent shock and vibration standards. AT4116 sturdy metal chassis effectively shields against electromagnetic interference, maintaining high measurement accuracy on low level signals. The analog circuitry is also isolated from the digital circuitry

Specification
GraduationThermocouple:K/T/J
Accuracy0.2°±2 digits
Range-200C~1300C(Varying depend on graduation)
Resolution0.1°
Channels16 channels
SpeedFast:100ms/channel Medium:500ms/channel Slow:1s/channel
CorrectionNone
ComparatorHigh/low beep Individual setting high/low value for each channel
InterfaceRS232C interface U-disc interface USB communication interface
ATS45 data acquisition software
Cold JunctionAccuracy:0.5°
TFT-LCD True-color LCD display,broken thermocouple check function
Voltage:85VAC~260VAC Frequency:50Hz/60Hz Power:10VA
216mm(Width)x88mm(Height)x300mm(Depth) 3kg
K Type thermocouple 16 teams(2m/team) data acquisition software
Feature
TFT-LCD True-color LCD display, 3 types of fonts
Scan speed: Fast/Med/Slow
Cold Junction Compensation
TFT True Color LCD Display.
Interface: RS232C and USB Interface
USB-Disk Interface
Broken thermocouple check function
Data acquisition software
Application
Apply to home appliance,motors,heating appliance,temperature controller,transformer,oven,thermal protector,power supply,lighting,electric power,LED and so on.
