PTZ IP Camera Outdoor 2MP 5MP Full HD Mini Speed Dome Cam IP Onvif 4X Zoom P2P 20m IR Night Vision ip66 Waterproof POE Optional

PTZ IP Camera Outdoor 2MP 5MP Full HD Mini Speed Dome Cam IP Onvif 4X Zoom P2P 20m IR Night Vision ip66 Waterproof POE Optional
  • Продавецkyxn9.info
  • Список ценUS $55.07piece
  • Продажная ценаUS $55.07piece
  • ДоставкаБесплатная доставка
  • Рейтинги4,7 (158)

Oписание продукта

405 poe 5mpProduct Description

HD IP Smart PTZ Dome Camera(Smart PTZ for short) is a new tech Intelligent PTZ camera, built-in online remote view & control function, Video Server function and combined normal PTZ camera’s function. It is easy to install and operate, no need complicated wiring work.

Smart PTZ not only has all normal functions of analog PTZ camera, but also based on Ethernet control, you can set the parameters and enable specific functions through Internet Explorer Browser.

  • 4pcs High quality array LEDs, 2pcs laser LEDs, auto-switch to long/middle/close distance focus, 100M IR distance.
  • High performance encoding scheme, with 5.0MP progressive scan CMOS image sensor to  capture clear and dynamic picture.
  • Support auto-balance, auto-focus, auto-explosure, automatic noise reduction, automatic contrast enhancement.
  • Full capacity for ONVIF protocol and GB/T28181.
  • Precision motor drive, sensitive response, smooth operation, accuracy error is less than 0.1 degrees, image no jitter at any speed.
  • Using a high-performance platform, stable and reliable performance, support dual stream support H.264 video compression algorithms, support multiple levels of video quality configuration.
  • Built-in against-surge and lightning protection device, effectively preventing damage from 4000V instantaneous current.
  • HD IP 5MP PTZ camera
  • 30X zoom
  • With PoE function (built-in POE function, no need to connect to any splitter)

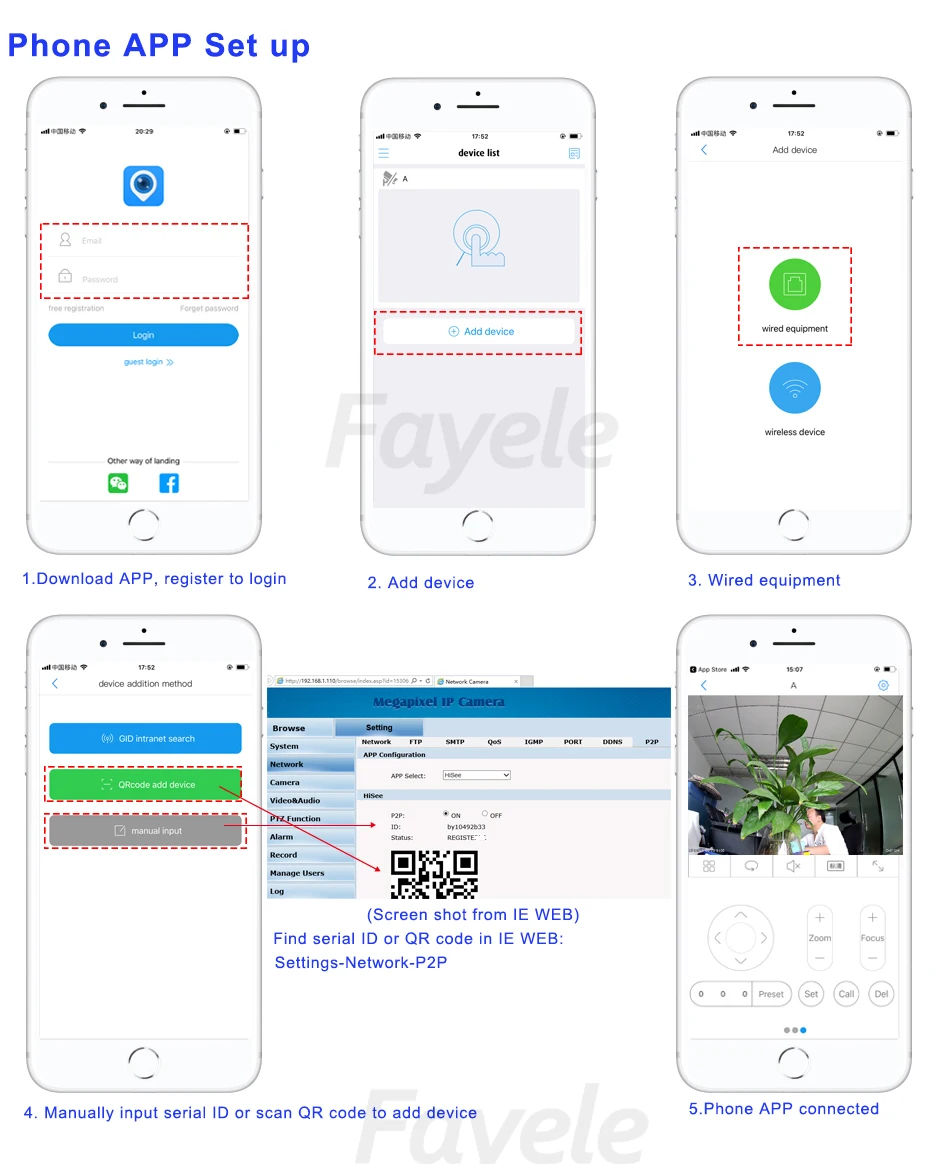

  • ​P2P Mobile view function
  • With audio in and DC out so when you use POE function, MIC gets power from camera directly, no need to run separate power for MIC.

405-IP_034in1-_07

Parameters

Model

NDR-405G-BGH6

Camera Specification

Image Sensor

1/2.8"  CMOS(Hi3516D+5521)

Minimum Illumination

Color: 0.05Lux, B/W: 0.01Lux, 0Lux with IR

3D DNR

Support

WDR

1/7.5s--1/2000s,AUTO

Electronic Shutter

Support

Day&Night mode

Auto ICR Color to Black

Focus Length

4.7-94mm, 30X Optical Zoom

Maximum Image

 2592x1944/5MP

Main Stream

 (2592x1944) (1920x1080)(1280×960), (1280×720), (800×600)

Sub Stream

 (704×576), (640×480), (648×360)

Video Compression

H.265, H.264, H.264_BASELINE H.264_Main profile

Network Protocol

HTTP ,FTP,SMTP,UPnP,SNMP,DDNS,NTP,RTSP,RTP,TCP

DHCP,PPPoE

Ethernet

ONVIF 2.4, GB/T.28181

Pan/Tilt

IR Distance

100M

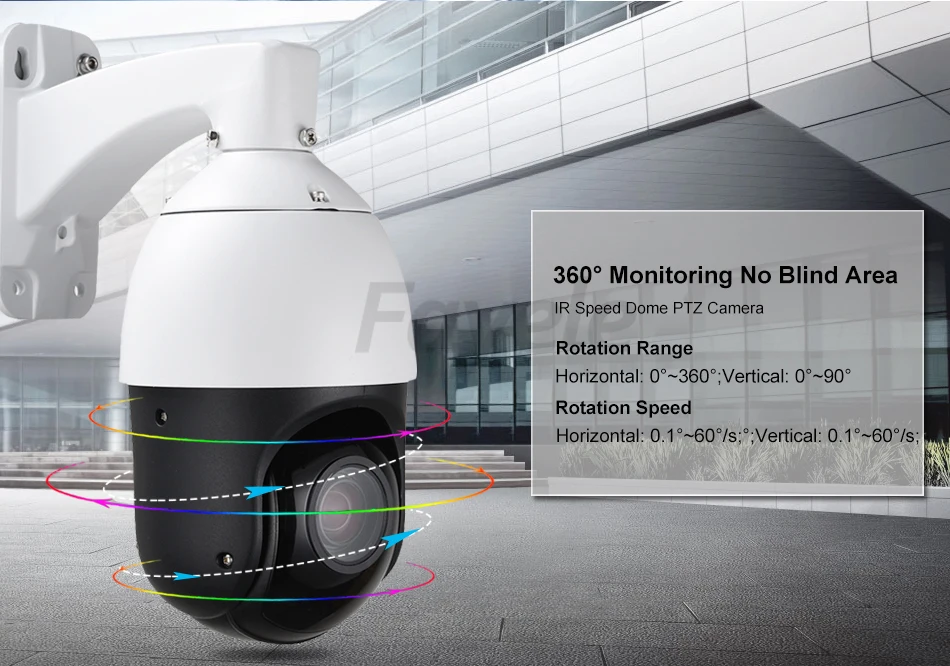

Horizontal Range

0°~360°Continuously

Vertical Range

0°~105°(Auto Flip)

Horizontal Speed

0.05°~100°/s

Vertical Speed

0.05°~100°/s

Max Speed

100°/S(Preset Speed)

Preset

255

Patrol Track

4 path, each path can add 10 presets

Left-right scan

1 path

Horizontal scan

1 path

Electric action

Watch position/left-right scan/horizontal 360°scan/patrol scan

Free action

Watch position/left-right scan/horizontal 360°scan/patrol scan

Watch position

1

Other

Power

Standard DC 12V

Consumption

25W MAX

Working Environment

Tempreture-20~60 degrees; Humidity<90%

Protection grade

IP66, 4000V Lightning protection, against-surge

Weight

2.6kg

Our camera is with built-in POE function, no need to connect to any external POE splitter.

Camera is With audio in and DC out so when you use POE function, MIC gets power from camera directly, no need to run separate power for MIC.

405 POE Diagramf5MP-1_01f5MP-1_02

405-IP_045MP PIC

405-IP_07

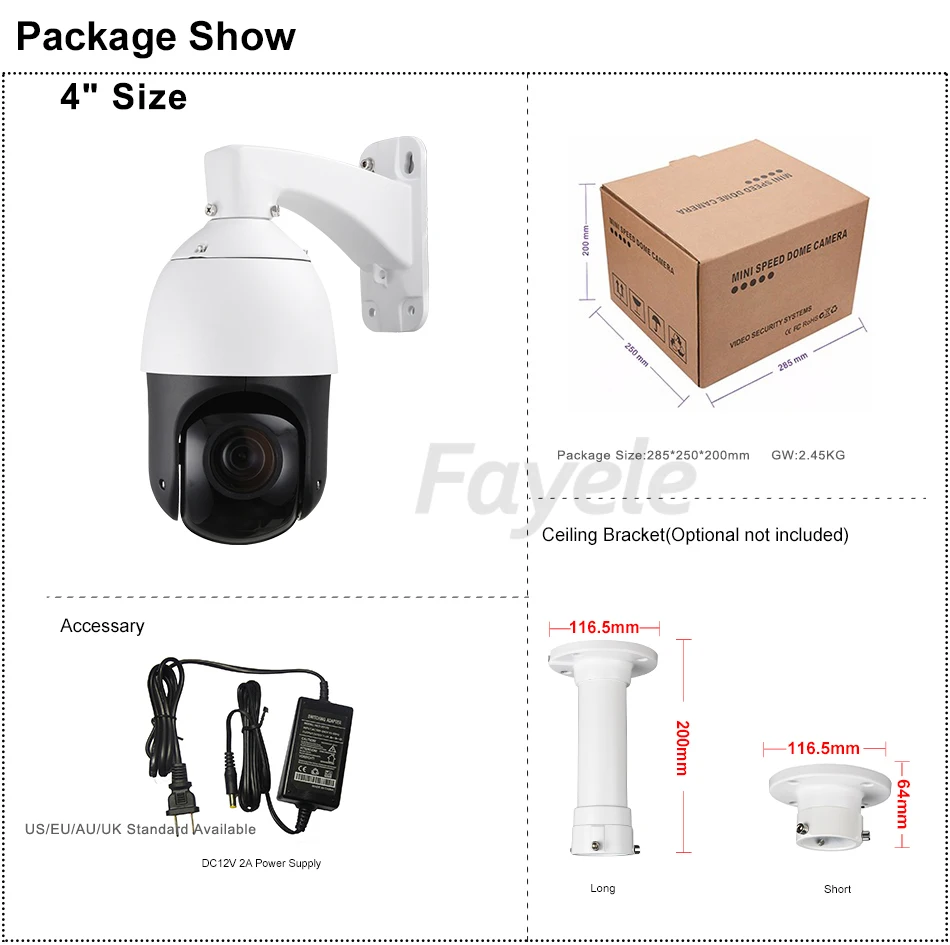

Package Contents

  • 1 x POE 5MP PTZ Camera
  • 1 x Wall Mount Bracket(If you need ceiling mount, please leave a message)
  • 1 x Power Supply
  • 1 x Screw Kit
  • 1 x User Manual

4in1-_08factory show
