2.4G RGBW Led Wall Mount Touch Panel Controller Compatible With All Mi.light Series RGB RGBW RGBWW Led Bulb Led Controller

2.4G RGBW Led Wall Mount Touch Panel Controller Compatible With All Mi.light Series RGB RGBW RGBWW Led Bulb Led Controller
  • Продавецkyxn9.info
  • Список ценUS $26.27piece
  • Продажная ценаUS $26.27piece
  • ДоставкаБесплатная доставка
  • Рейтинги4,2 (158)

Oписание продукта



TATOR-RC Hobbywing XRotor 6 Series with Pixhawk 2.1 Standard Autopilot Flight Controller + Here GPS for Agriculutral Drones

Product Description:

package include:

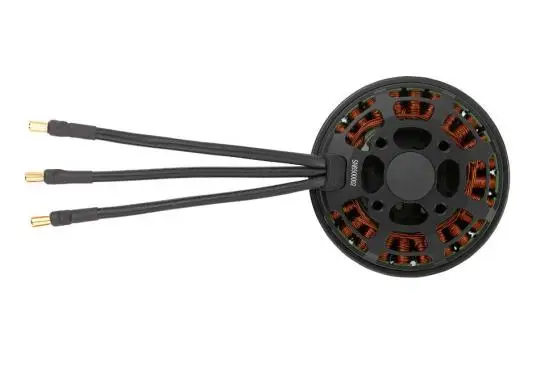

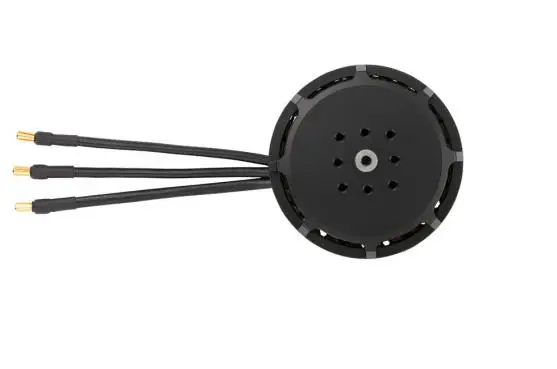

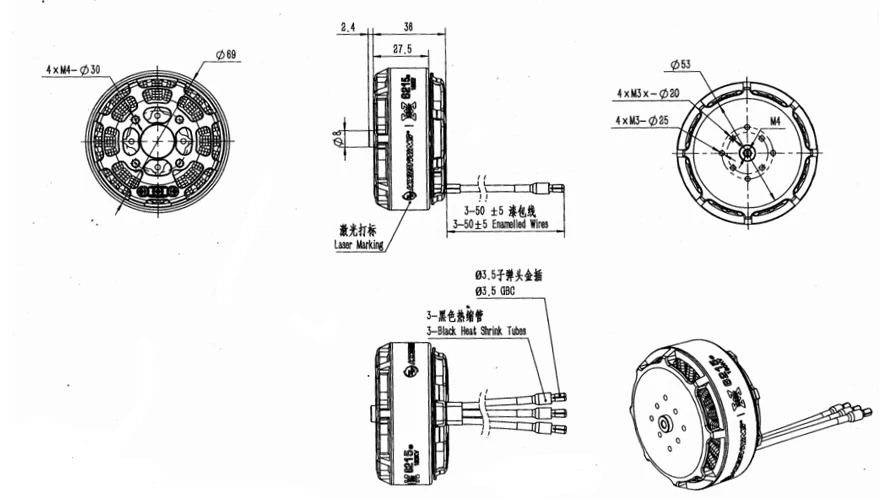

motor x1pc

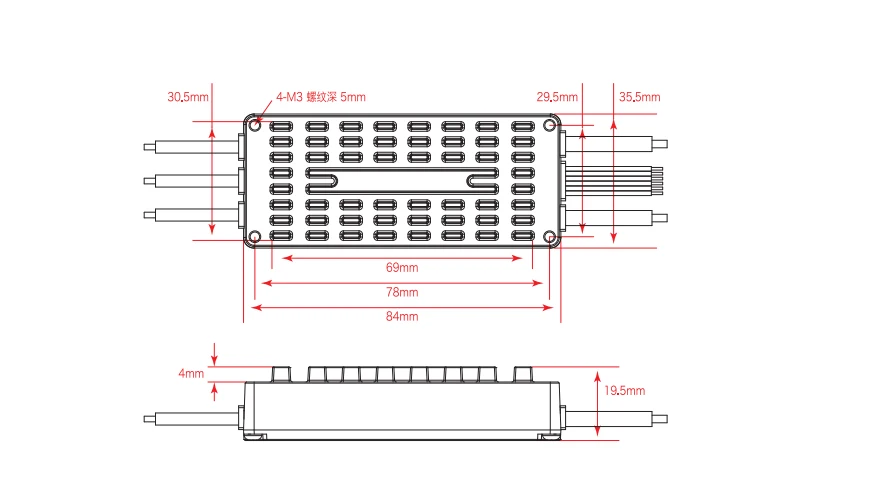

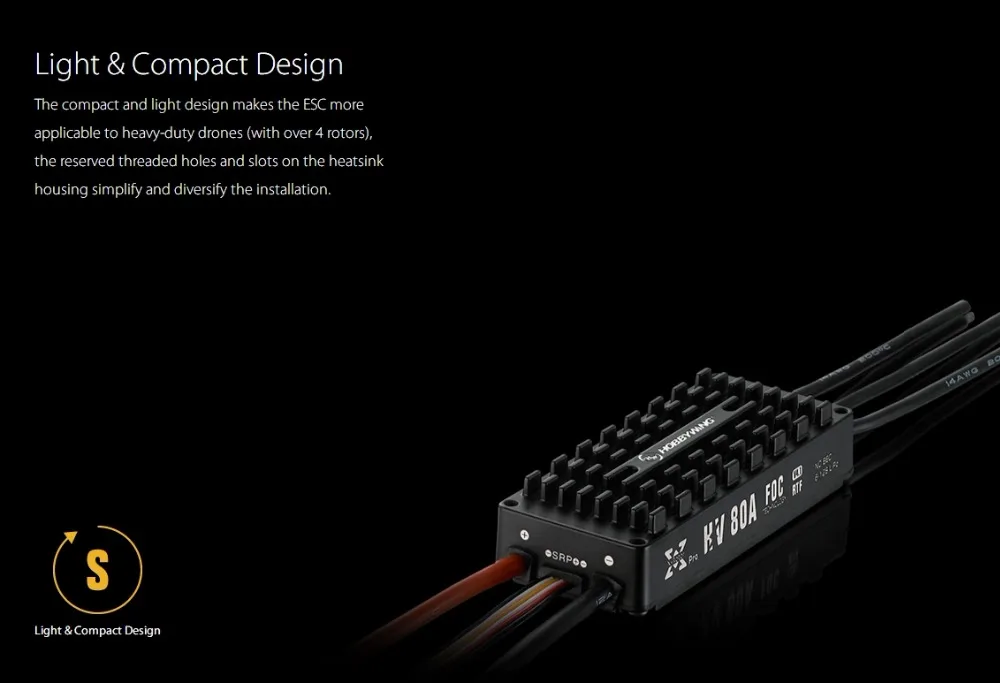

esc x1pc

propller x1pc

Pixhawk 2.1 Flight Controller x1pc

Here GPS GNSS Combo x1pc

XRotor 6 Series Power Combo :

1807101827_31807101828_41807101829_503021807101830_61807101830_71807101830_81807101830_91807101831_101807101831_111807101831_121807101831_131807101832_141807101832_151807101832_16591_thumb_P_1494483643150591_thumb_P_1494483643177591_thumb_P_1494483643234591_thumb_P_1494483644517

Pixhawk 2.1 Standard Autopilot Flight Controller + Here GPS GNSS Combo


Description:
Get Started on your road to Autonomy!
This Standard Kit contains the following items:
  • Pixhawk 2.1 Cube.... the brains behind the operation.
  • Pixhawk 2.1 Standard Carrier Board (not compatible with Intel Edison Chip)
  • 1 x Power Brick (two power bricks can be fitted for redundant power.)
  • Cable set that allows you to connect to your old Telemetry module, GPS, and sensors
  • 1 x Here GNSS GPS Module
  • 1 x GPS1 port connector for connecting Here GNSS to PH2
  • SD Card (inserted in Cube)
  • 2 x Telem cables
  • Power Cable
  • I2C Cable
  • Buzzer Cable
  • Micro USB cable
  • GPS1 cable (with safety switch)
  • I2C Splitter
  • 4 x Mounting screws (M2.5*8)
  • 3M Double Sided Foam Tapes




The goal with Pixhawk2 was not just to update Pixhawk but, to fundamentally redesign the entire experience while maintaining the independent, open-hardware design. Pixhawk2 is the world’s most advanced open autopilot system aimed at meeting the needs of the academic, hobby and industrial communities at low cost and high availability. Utilizing the advanced APM firmware, Pixhawk2 turns any remote controlled plane, copter, or rover into a full-featured professional drone.

The “Cube”
The Pixhawk2 has been designed for hobbyists and professionals alike. The “cube” is the center of that philosophy, providing all the functions expected from a modern autopilot with one simple interface. The 80pin DF17 connector seamlessly attaches to the carrier board for a complete standalone autopilot or can be used by OEM’s to design carrier boards for custom solutions.
Boasting triple redundant IMU’s with vibration isolation and built-in heat control for operation in low-temperature environments, the Pixhawk2 Cube is second to none.

The “Carrier”
All-in-one
An integrated, single board / box flight controller.
All-in-one design with integrated FMU and IO and lots of I/O ports.
Improved ease-of-use.
Improved sensor performance.
Improved microcontroller resources.
Increased reliability and reduced integration complexity.
Separate power supplies for FMU and IO (see power architecture section).
On-board battery backup for FMU and IO SRAM / RTC.

So much I/O
14 PWM ports, five general purpose serial ports, three analog inputs, two I2C ports, two CAN Bus interface ports and, an SPI port make Pixhawk2 more than capable for most applications without the need for expansion. This is broken out on the carrier board for use with; GPS, Telemetry, External USB, RGB LED and safety switch, airspeed sensors, CAN bus ESCs, power modules and much much more.

Here GPS Highlights
Concurrent reception of up to 3 GNSS (GPS, Galileo, GLONASS, BeiDou)
Industry leading –167 dBm navigation sensitivity
Security and integrity protection
Supports all satellite augmentation systems
Advanced jamming and spoofing detection

Other Here GPS features
Breakaway mount
Notification RGB LED
HMC5983 MAG, and LIS3MDL Mag
6CM Ground plane

12345678
HTB168cbQFXXXXcpXpXXq6xXFXXXi
